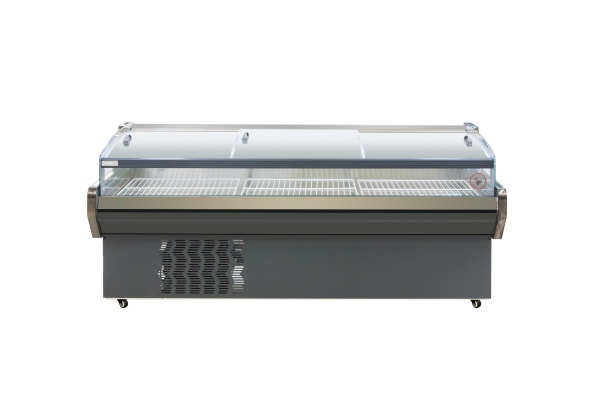

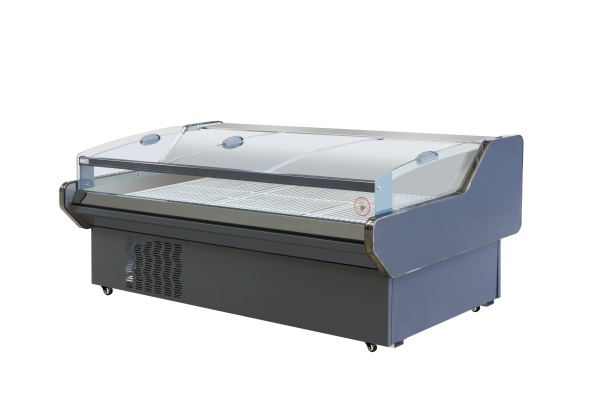

Direct Cooling Fresh Meat Cabinet
Description
The Main Selling Points Of Direct Cooling Fresh Meat Cabinets Include The Following:
Corrosion resistance and easy cleaning: Stainless steel materials are corrosion-resistant and can effectively resist the effects of humidity and temperature changes, extending the service life. At the same time, the stainless steel surface is smooth, very easy to clean, and will not contaminate food.
Precise temperature control: Direct cooling fresh meat cabinets effectively slow down bacterial activity and extend the shelf life of fresh meat by accurately controlling the temperature inside the cabinet between 2-8 degrees. The whole machine has precise refrigeration temperature control, and dual control protection of defrosting temperature and time ensures the display and preservation of items in the fresh meat cabinet.
Large capacity and open design: Air-cooled fresh meat cabinets provide a completely open display and preservation space with larger capacity and more convenient access. This design is particularly suitable for on-site processing, preservation and sales of fresh meat food to meet commercial needs.
Sturdy and durable: The cabinet body adopts a sturdy steel frame foundation and a powder-coated zinc steel plate exterior surface to ensure that the cabinet body is both durable and beautiful. This structural design enables the fresh meat cabinet to operate stably in various commercial environments.
Multiple designs and configuration options: Stainless steel air-cooled fresh meat cabinets offer a variety of designs and configuration options, including any splicing or single-unit type, to meet different needs. Users can choose the appropriate configuration based on the actual usage scenario.
Product Range | Direct Cooling Fresh Meat Cabinet Series | |
Model | SC-2000Direct Cooling Fresh Meat Cabinet | SC-2500Direct Cooling Fresh Meat Cabinet |
Cabinet Color (Optional) | Gray (Color Number 7024) | |
Backstage Material | 0.5MMStainless Steel Frosted Foam | |
Front Slide | Aluminum Alloy Electrostatic Spraying | |
Left And Right Single Glass | 8MMTransparent Tempered Single-Piece Glass On Both Sides | |
Curved Sliding Glass Door | 1 Piece For Upper Curved Steel Glass Door And 2 Pieces For Lower Curved Steel Glass Door | |
Windshield | 1 Piece Of Front Tempered Glass | |
Liner Material And Thickness | Stainless Steel Frosting/Thickness0.45MM | |
Outer Plate Material And Thickness | Galvanized Sheet Electrostatic Spraying/Thickness0.45MM | |
Insulation Material | Cyclopentane | |
Insulation Layer Thickness And Density | 40MM/38kg/m³ | |
Caster Size And Height | 2 Inches/Height70MM | |
Illumination（10000K） | 1700MM/1Strip | |
Refrigeration Method | Direct Cooling | |
Refrigeration Pipe Material | Copper Tube 7*0.4 | |
Temperature（℃） | 2℃To-8℃ | |
Temperature Control Form | Intelligent Lighting Temperature Control | |
Caster Type | Turn To 4 | Turn To 4 |
Number Of Internal Leveling Shelves | 3 Indivual | 4 Indivual |
Net Capacity（L) | 260L | 360L |
Condenser Model | Steel Wire 320 Eight Rows | Steel Wire 450 Single Channel Single Hole |
Condensing Fan Brand Model | Fengyin Motor 35w Aluminum Fan Blade/1 Piece | Fengyin Motor 35w Aluminum Fan Blade/1 Piece |
Refrigerant Type And Injection Amount(G) | R290/90g | R290/130g |
Compressor Brand Model | DongbeiL76CU1 | DongbeiKK480CUI/MeizhiPA99HMF |
Rated Voltage(V) | 220V/50HZ | 220V/50HZ |
Input Current(A) | 1.9A | 2.3A |
Comprehensive Power Consumption(KW) | 3.2kw.h/24h | 4.0kw.h/24h |
Total Input Power(W) | 236W | 280W |
Product Weight(KG) | 144kg | 150kg |
Product Weightkg(Including Packaging） | 164kg | 175kg |
Product Internal Dimensions（MM） | 1920*880*230 | 2480*880*230 |
Product External Dimensions（MM） | 2000*1050*860 | 2500*1050*860 |
Product Packaging Size（MM） | 2120*1150*930 | 2620*1150*930 |
Packaging | Product+Foam Corner Protector+Stretch Film+Wood Packaging | |
