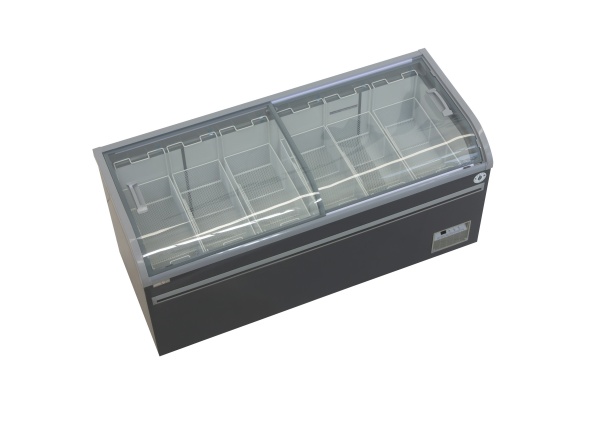

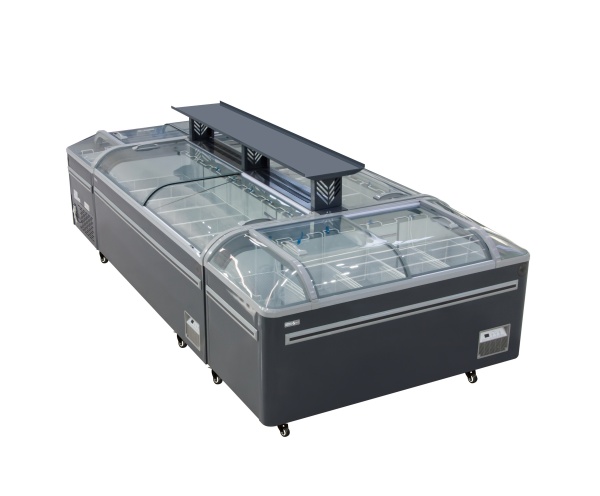

A Arc Cabinet Series
Description
Product introduction:
1. The same material as the Xingxing brand, high-end and atmospheric.
2. LED lights, strong display effect, meet the user's display needs for food display.
3. Aluminum-plastic embossed liner, corrosion-resistant, longer service life than embossed aluminum liner
4. Equipped with an encrypted mesh frame, convenient for users to clearly display food in categories.
5. Tempered coated heat-reflective glass door, good insulation effect, good display effect.
Application scenarios:
Supermarkets, convenience stores, frozen food markets, farmers' markets, hot pot and barbecue food stores, fresh food chains, ice cream shops, etc.
Main functions:
Display and storage of items at minus 18 degrees, can be combined or used separately, built-in LED lamps, better display effect.
| Product Series | Model A Arc Cabinet Series | |||
| Model | SD/SC-500 Luxury Arc Cabinet | SD/SC-600 Luxury Arc Cabinet | SD/SC-700 Luxury Arc Cabinet | SD/SC-560 End Cabinet |
| Cabinet Color (Optional) | White (Color Code 7300)Gray (Color Code 7024) | |||
| Cabinet Edge Color & Material | Light Gray, Plastic PVC | |||
| Front Edge Material & Color | Aluminum Alloy Sandblasted Silver White | |||
| Sliding Glass Doors (Left/Right) | Upper door: 1 piece, Lower door: 1 piece | Upper door: 1 piece, Lower door: 1 piece | Upper door: 1 piece, Lower door: 1 piece | Upper door: 1 piece, Lower door: 1 piece, Spherical panels (left/right) |
| Lighting | White LED Light, 220V | |||
| Inner Liner Material & Thickness | White Embossed Aluminum Plate / 0.35mm | |||
| Outer Panel Material & Thickness | Electrostatic Spray-coated Galvanized Steel / 0.45mm | |||
| Insulation Material | Cyclopentane | |||
| Insulation Layer Thickness & Density | 75mm / 38kg/m³ | |||
| Caster Size & Height | 2-inch / 70mm | |||
| Cooling Method | Direct Cooling | |||
| Refrigeration Tube Material | Galvanized Tube 7.80.6 / Copper Tube 70.4 | |||
| Temperature Range （℃） | 10℃to-24℃ | |||
| Temperature Control Type | Smart Illumination & Temperature Control | |||
| Caster Type | 4 Swivel Casters | 4 Swivel Casters | 4 Swivel Casters | 4 Swivel Casters |
| Net Basket Quantity | 5 | 6 | 6 | 5 |
| Net Capacity (L) | 428L | 534L | 600L | 481L |
| Condenser Model | Steel Wire 320 (8 rows) | Steel Wire 320 (8 rows) | Steel Wire 325 (Dual Channel) | Steel Wire 320 (8 rows) |
| Condenser Fan Brand & Model | Fengyin Motor 35W Aluminum Blades | Fengyin Motor 35W Aluminum Blades | Fengyin Motor 35W Aluminum Blades | Fengyin Motor 35W Aluminum Blades |
| Refrigerant Type & Charge (g) | R290/100g | R290/116g | R290/130g | R290/112g |
| Compressor Brand & Model | Dongbei KK480CUI / Meizhi PA99HMF | Dongbei KK480CUI / Meizhi PA99HMF | Dongbei KK480CUI / Meizhi PA99HMF | Dongbei KK480CUI / Meizhi PA99HMF |
| Rated Voltage (V) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Input Current (A) | 2.3A | 2.3A | 2.3A | 2.3A |
| Energy Consumption (kWh) | 3.2kWh/24h | 3.4kWh/24h | 3.6kWh/24h | 3.8kWh/24h |
| Total Input Power (W) | 280W | 280W | 280W | 280W |
| Product Weight (kg) | 70kg | 80kg | 88kg | 76kg |
| Product Weight (kg, including packaging) | 82kg | 93kg | 102kg | 89kg |
| Product Internal Dimensions(mm) Length*Width*Height | 1360*605*585 | 1660*605*585 | 1860*605*585 | 1515*605*585 |
| Product External Dimensions(mm) Length*Width*Height | 1500*760*840 | 1800*760*840 | 2000*760*840 | 1640*760*840 |
| Product Packaging Size(mm) Length*Width*Height | 1550*830*940 | 1850*830*940 | 2050*830*940 | 1730*830*940 |
| Packaging Method | Wooden Pallet + Product + Plastic Bag + Foam + Wooden Cover + Carton + Straps | |||
